Don’t Sweat The Mistakes

Continuing with the idea of converting O-16.5 narrow gauge wagons into O9 narrow gauge wagons, I’ve created a large O9 bogie wagon.

I made a few mistakes when I was making this model. Sometimes modellers give up if this happens.

My advice would be: dont give up. Mistakes can be fixed or hidden. This model is a good example of that!

Click on an image for a larger version

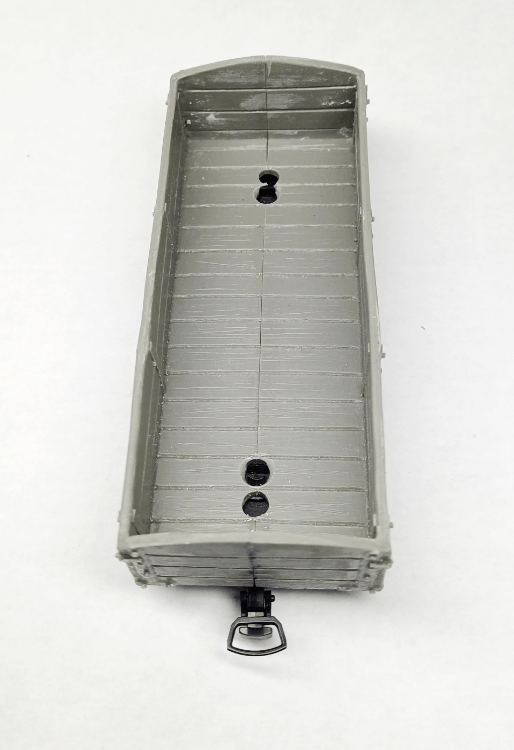

Here I’ve cut out a section from the middle of the wagon, glued it back together and drilled holes for the bogies.
Unfortunately the first holes I drilled were too close to the end of the wagon.
I had to drill a second set of holes to get the bogies in the right place!

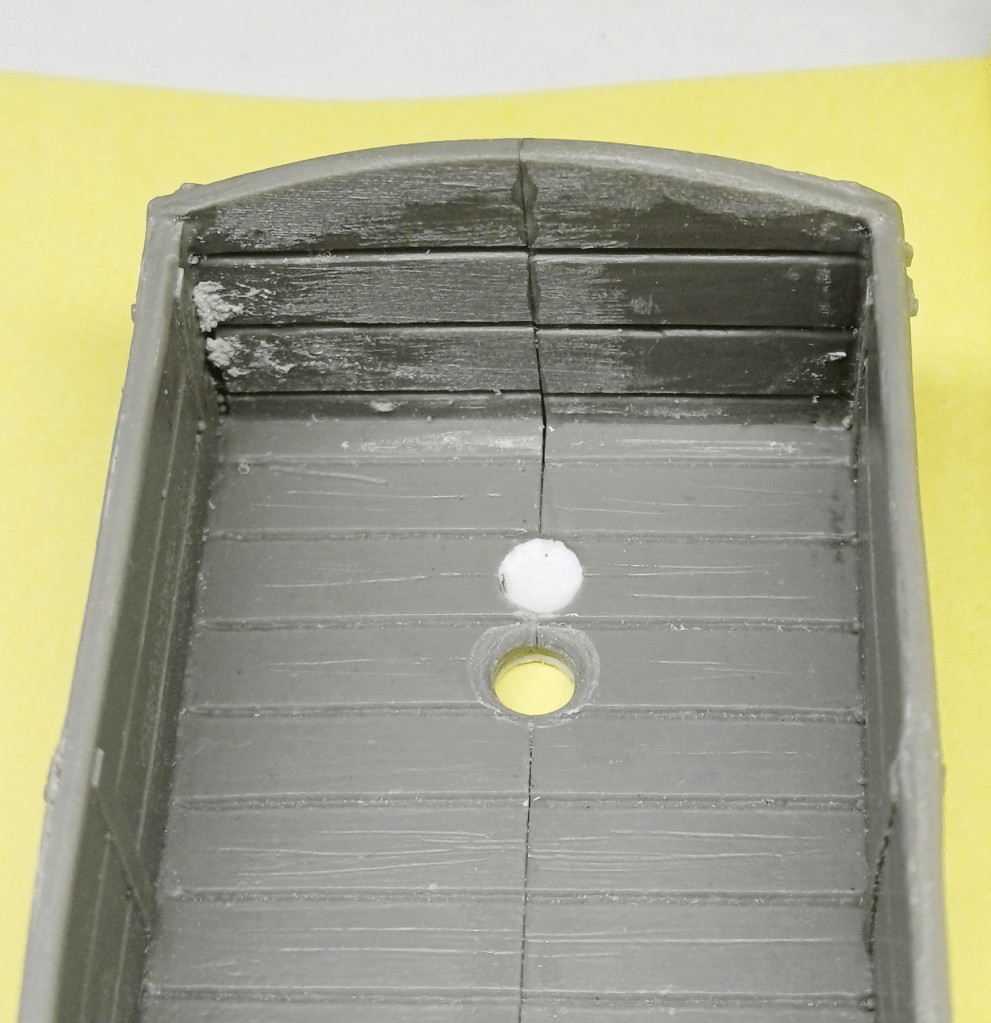

I filled the incorrect holes with plasticard.

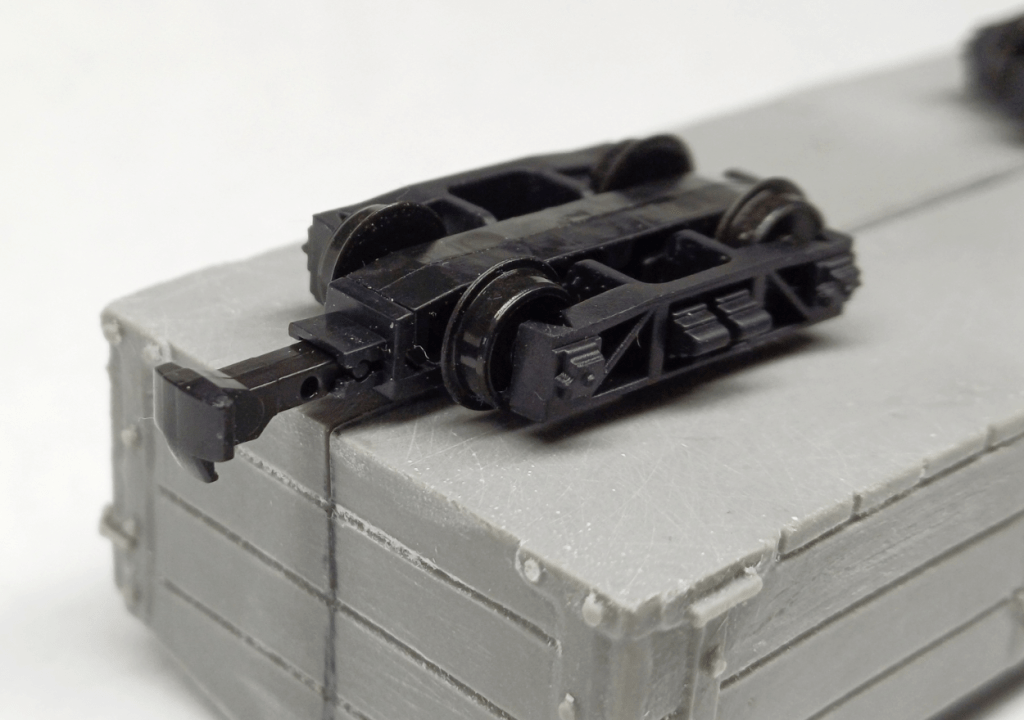

Then I found the wheel flanges rubbed against the underside of the wagon.

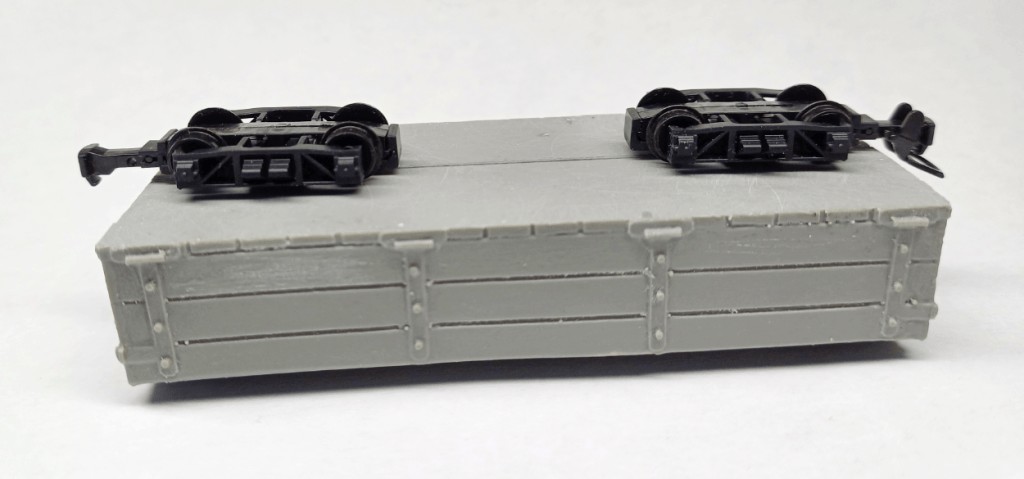

I added packing pieces to raise the bogies and stop the flanges rubbing.
I added details to hide the cuts and created fake solebars.
I thought some sacks would hide the mess 🙂
After painting you can still see the mistakes.

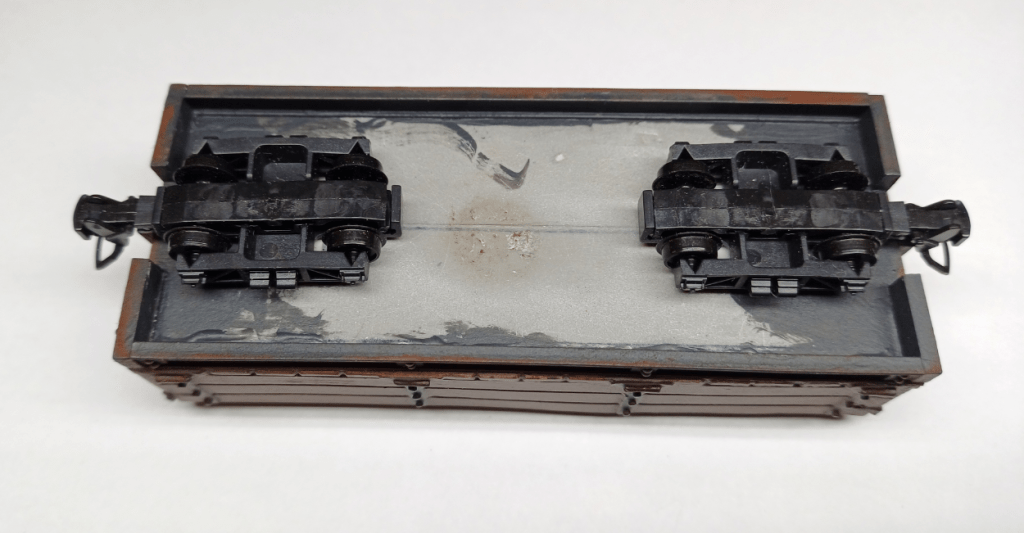

I don’t worry about what won’t be visible. The underside isn’t neat and tidy.
Some decals added to the end of the wagon.
The sacks do hide the mistakes.
I like it when something works!
An end view of the completed wagon showing the decals.
The final wagon looks pretty good.
Mistakes can be hidden 🙂
